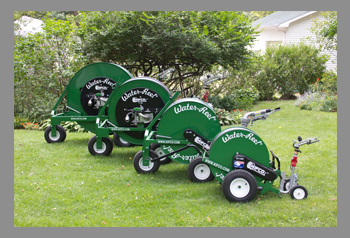

several B-series water-reels showcased for garden irrigation

Kifco B-Series Water-Reels are a versatile solution to your sports field, horse arena, cemetery, park, pasture, garden or residential irrigation or other small acreage irrigation needs. B-Series travelers come in a wide variety of lengths and tube diameters and can irrigate an area as small as an indoor horse arena or as large as a 30 acre pasture.

All B-Series models either retract using a highly efficient water-powered turbine (T Models) or a simple bellows drive (B Models) or a gas-powered engine drive or an electric motor (E Models) based on your particular needs. Kifco is the first and only manufacturer to provide a machine specifically designed to cool, rinse and condition synthetic turf fields before or during a game

Learn more about the water-reel concept.

Find out which uses are best suited for the B-Series Water-Reels.

2 Ways to Choose Your Model

Choose by Area Covered

B-Series Water-Reels can irrigate from 0.4 to 3.2 acres per run and can cover a field over a quarter mile long. Click on the button below to learn more.

Choose by Model Number & Tube Size

Depending on the projects you have at hand, you may want to pick the right chassis and hose for your space first. Click on the button below to learn more.

Choose Your Model by Tube Length & Diameter or Chassis Size

Click on the model name to get more information on B-Series Water-Reels.

Model Name		Tube Diameter & Length
B110 E110		1.1” x 280’
B140 E140		1.4” x 350’
T/E180		1.8” x 380’
T200S E200SST		2.0” x 320’
T/E200L		2.0” x 580’
T/E210		2.1” x 400’
T200LSC		2.0” x 580’

Choose Your Model by Area Covered

Below is a list of the Kifco B-Series Models with minimum and maximum irrigated areas based on specific flow and pressure data. Be sure to contact us for more information.

Select a model number below for more detailed product information.

Model	Tube Inner Diameter / Length	Irrigated Width	Irrigated Length	Irrigated Area (Acres Per Run)	Drive System	GPM Range	Inlet PSI Range	Booster Pump Options
E110	1.1" x 280'	58 - 110'	309 - 335'	0.4 - 0.9	Electric Motor	3 - 26	23 - 100	1 HP Electric
B110	1.1" x 280'	78 - 110'	319 - 335'	0.6 - 0.9	Bellows	10 - 26	51 - 100	1 HP Electric
E140	1.4" x 350'	82 - 198'	391 - 449'	0.4 - 2.0	Electric Motor	13 - 80	25 - 149	5HP / 9HP

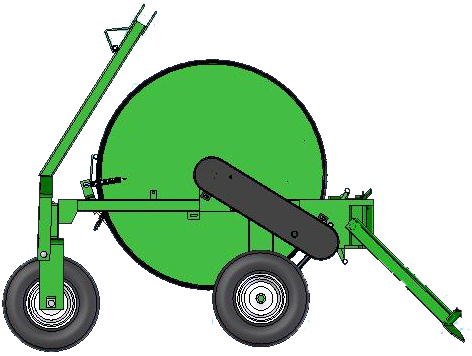

B140	1.4" x 350'	120 - 160'	410 - 440'	1.2 - 2.0	Bellows	25 - 60	50 - 117	5HP / 9HP

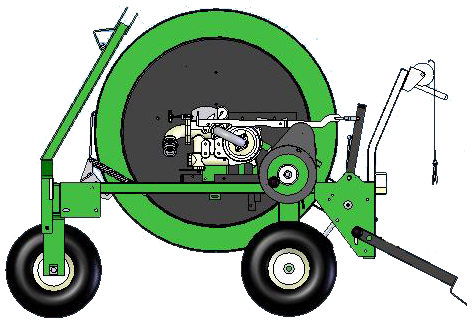

T180	1.8" x 380'	125 - 180'	449 - 478'	1.1 - 2.5	Turbine*	25 - 102	50 - 150	5HP / 9HP
T200 S	2.0" x 320'	148 - 218'	394 - 435'	1.1 - 2.4	Turbine*	25 - 143	50 - 150	5HP / 9HP
E200 SST	2.0" x 320'	121 - 198'	380 - 419'	N/A	Engine	52 - 168	50 - 150	5HP / 9HP

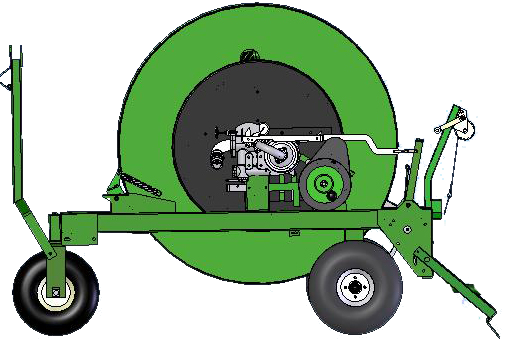

T200 L	2.0" x 580'	138 - 191'	649 - 676'	2.3 - 3.2	Turbine*	47 - 115	55 - 140	5HP / 9HP
T200 LSC	2.0" x 580'	138 - 191'	649 - 676'	2.3 - 3.2	Turbine	47 - 115	N/A	23 HP
T210	2.1" x 400'	154 - 218'	469 - 511'	1.6 - 2.8	Turbine*	47 - 140	55 - 140	5HP / 9HP

* These models are also available in engine drive.
** The E200SST is specifically designed to cool, rinse and condition synthetic turf in as little as 25 minutes
*** The T200LSC is a self-contained irrigation and primary pump system for use with open water sources (ponds, creeks, etc.)

Note: Irrigated dimensions may vary due to wind conditions and sprinkler specifications. All irrigated widths and lengths are based on 80% of the actual wetted width and length to assure acceptable uniformity.

Applications

Flexibility to perform athletic field irrigation on multiple fields with one machine.
Irrigates sports fields in single pass.
Softens field to reduce player injuries.

Only Kifco offers a machine specifically designed to cool, rinse, and condition synthetic turf fields.
Can water the entire field, end-zone to end-zone and sideline to sideline, in 27 minutes.
