Irrigate Sports Fields

Keeping a beautiful green playing field for sports like soccer, football, and baseball is important and requires lots of work. Field and turf maintenance personnel need quality equipment to keep their fields in tip top shape. Whether you are irrigating a 300 ft. lacrosse field or a entire multi-field complex, our irrigation travellers are the perfect tool for the job. With many models, sizes and lengths to choose from, you can pick the best reel for your application, which, in some cases will allow you to irrigate the whole field in one unattended pass. Kifco also offers solutions for maintaining synthetic turf.

The Kifco Water-Reel system can cut the work (and cost!) of irrigating your sports field in half. Our B-Series Water-Reels have the capability to irrigate a wide variety of field sizes, often in a single unattended pass, they cost less than in-ground systems, and they require less maintenance.

See below to learn more about some of the options for irrigating sports fields and greens.

Football Field Irrigation

Water-Reel Benefits:

Irrigates sports fields in a single pass
More affordable than in-ground systems
Lower ongoing maintenance costs
No in-ground heads to repair or winterize
Reduces player injuries due to softer fields and no in-ground heads to worry about

Football Field Design Tools:

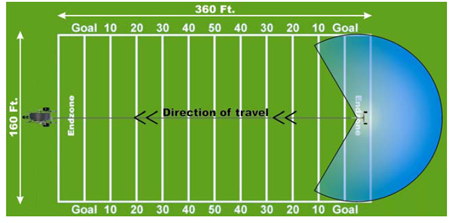

ONE PASS IRRIGATION

The T200S, T180, or B140 can all irrigate a football field in one pass with 53 GPM and a minimum pressure of 80 to 106 PSI. The T200S optimizes pressure and flow for the fastest application of water.

Football Field Dimensions: 360 ft x 160 ft

Minimum Irrigated Width: 160 ft

*All performance data based on Nelson SR75 with a .50" nozzle.

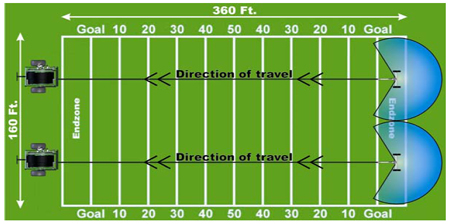

TWO PASS IRRIGATION

Both the B110 and B140 can irrigate a football field in two passes.

Football Field Dimensions: 360 ft x 160 ft

Minimum Irrigated Width: 180 ft

*B110, E110,, B140 and E140 performance data based on Sime K1 with 7mm and 8mm nozzle respectively.

Suggested Products for Football Fields:

Find A Dealer
Find your closest dealer for these products.

Soccer Field Irrigation

Benefits from using a Water-Reel for soccer field irrigation:

Flexibility to irrigate multiple fields with a single machine
Irrigate an entire field in a single pass depending on model
WaterReels are a fraction of the cost of an in-ground system
No permanent sprinkler heads to repair or winterize

Soccer Field Design Tools:

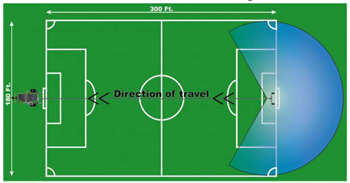

SINGLE PASS IRRIGATION

Model T200S can irrigate a soccer field in a single pass with 61 GPM and a minimum pressure of 104 PSI. Model T200S requires less pressure due to shorter hose and larger diameter.

Field Dimensions: 300 ft x 180 ft

Minimum Irrigated Width: 180 ft

*Performance data based on Nelson SR75 w/ .50" nozzle

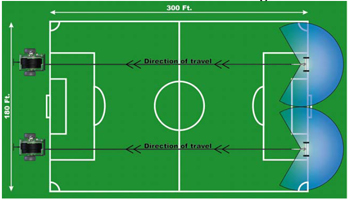

TWO-PASS IRRIGATION

Models T200S,T180, and B140 can irrigate a soccer field in two passes with les than 30 GPM and 55 PSI.

Field Dimensions: 360 ft x 180 ft

Minimum Irrigated Width:: 100 ft

*Performance data based on Nelson SR75 w/ .40" nozzle.

Recommended Products for Soccer Field Irrigation:

Locate a Dealer

Lacrosse Field Irrigation

Water-Reel Benefits:

- Irrigates sports fields in a single pass
- More affordable than in-ground systems
- Lower ongoing maintenance costs
- No in-ground heads to repair or winterize
- Reduces player injuries due to softer fields and no in-ground heads to worry about

Lacross Field Design Tools:

Contact Kifco for more information.

Suggested Products for Lacrosse Fields:

Find a Dealer
Find the closest dealer for these products.

Irrigation for Baseball & Softball Fields

Water-Reel Benefits:

Irrigates sports fields in a single pass
Ability to irrigate on an arc
More affordable than in-ground systems
No in-ground sprinkler heads to repair or winterize
Reduces player injuries due to softer fields and no in-ground heads to worry about

Baseball and Softball Field Design Tools:

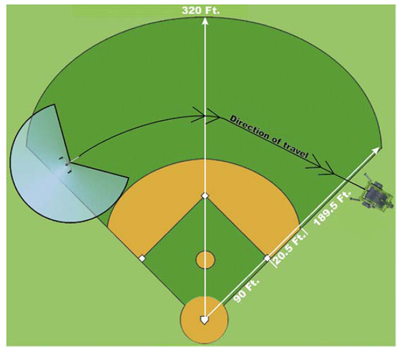

One Pass Irrigation

The T200S, T180, or B140 can all irrigate a baseball field in one pass with 35-40 GPM and a minimum pressure of 55 to 90 PSI. The T200S optimizes pressure and flow for the fastest application of water..

Baseball Field Dimensions: See graphic

Minimum Irrigated Width: 130 ft.

*All performance data based on Nelson SR75 with a .45" nozzle..

Irrigating on an Arc:

Kifco travelers will follow the curve of a baseball field if pulled out along an arc. Th Water-Reel must only be pulled out along an arc after a straight pull out of a minimum of 20% of the tube length.

Suggested Products for Baseball and Softball Fields:

Find A Dealer

Find your nearest dealer

Sports Complex Multi-Field Irrigation

Water-Reel Beenfits:

Irrigates sports fields in a single pass\
More affordable than in-ground systems
Lower ongoing maintenance costs
No in-ground heads to repair or winterize
Reduces player injuries due to softer fields and no in-ground heads to worry about

Suggested Products for Sports Complexes:

Contact Kifco for more information.

Suggested Products for Sports Complexes:

Find a Dealer
Locate your nearest Kifco Dealer.

Hockey Field Irrigation

fieldhockey

Beneficios de los Water-Reels:

Irriga un campo deportivo en un solo paso
Más económico que sistemas fijos bajo tierra
Menos gastos continuos de mantenimiento
No hay aspersores bajo tierra que reparar ni preparar para el invierno
Reduce lesiones a los jugadores por ablandar el campo y por no tener aspersores bajo tierra

Herramientas de diseño de los sistemas regaderos para los complejos de de hockey sobre hierba:

Favor de Contactar Kifco para más información.

PRODUCTOS RECOMENDADOS PARA Campos de Hockey Sobre Hierba:

Localizar un Distribuidor
Localizar el distribuidor de estos productos más cercano.

Irrigate Sports Practice Fields

Water-Reel Benefits:

Irrigates sports fields in a single pass
More affodable than in-ground systems
Lower ongoing maintenance costs
No in-ground heads to repair or winterize
Reduces player injuries due to softer fields and no in-ground heads to worry about

Practice Field Design Tools:

Please Contact Kifco for more information.

Suggested Products for Practice Fields:

Find A Dealer
Find your closest dealer for these products.

Synthetic Turf Irrigation

Water-Reel Benefits:

Only Kifco offers a machine specifically designed to cool, condition and rinse synthetic turf fields
More affordable than in ground irrigation systems, which can cost up to four times as much
Little or no risk of damage to the synthetic turf from broken in ground lines
Improves recovery of damaged turf in high traffic areas
Improves playing conditions and appearance of fields

Synthetic Field Design Tools:

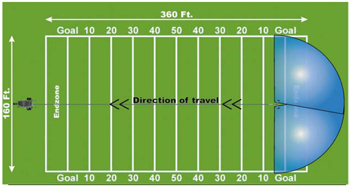

SYNTHETIC FOOTBALL FIELD IRRIGATION

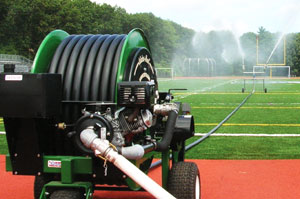

The E 200SST is specifically designed for the application of water to cool and condition all types of synthetic turf. The machine can apply .1" to .2" of water to a football field or hockey field in as little as 30 minutes. The machine is equipped with a dual gun, gun cart for speed of water application.

Football Field Dimensions: 360 ft x 160 ft

Minimum Irrigated Width: 160 ft

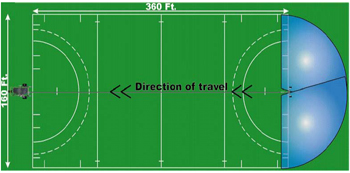

SYNTHETIC HOCKEY FIELD IRRIGATION

See Description Above.

Hockey Field Dimensions: 360 ft x 160 ft

Minimum Irrigated Width: 160 ft

Suggested Products for Synthetic Fields:

B-Series Model E200SST

Find A Dealer
Find your closest dealer for these products.
